Full featured CRM grid in HTML/JS

In last December, I was asked to write a web resource to display a grid with CRM records. I was quite frustrated because I didn’t succeed to manage some grid features easily like fixed header with horizontal scrolling among others. I delivered a fixed table which was not so bad but absolutely not something that look like the application grid views.

So I decided to work harder to find a way to do this CRM style grid view. After some works (almost two full days), I have succeeded to create a full featured CRM grid view by using only JavaScript.

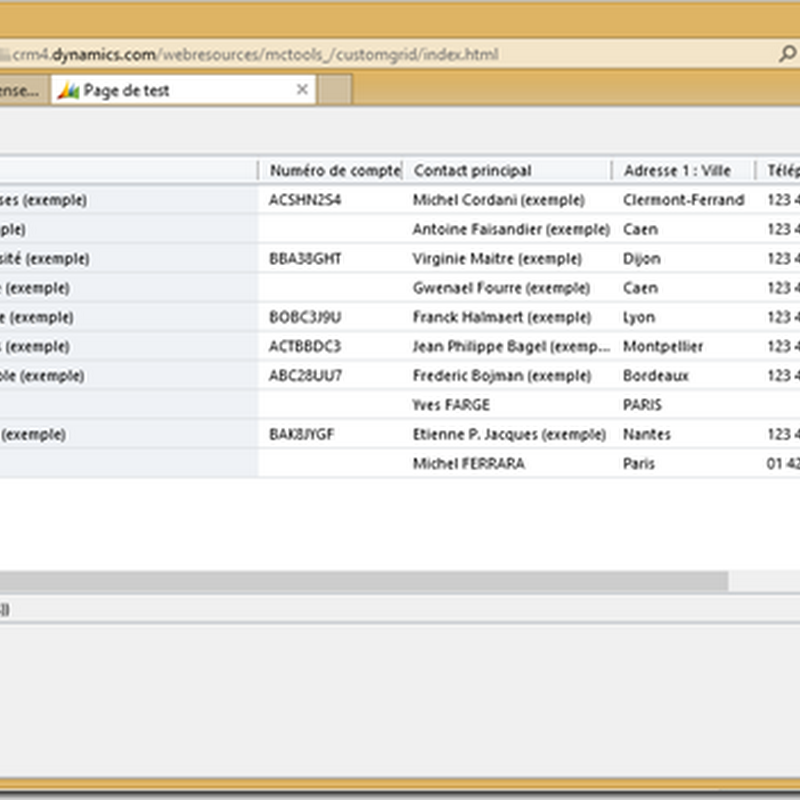

Here is a screenshot:


And this is how I can create a grid view from only a div in a HTML page

<html>
<
head>
<
title>Page de test</title>
<
script src="json2.js"></script>
<
script src="jquery.js"></script>
<
script src="XrmServiceToolKit.js"></script>
<
script src="sdk.metadata.js"></script>
<
script src="table.js"></script>
<
script src="scripts.js"></script>
<
script src="../../ClientGlobalContext.js.aspx"></script>
<
link href="style.css" type="text/css" rel="stylesheet"/>
</
head>
<
body onload="LoadPage();">
<
input type="button" onclick="display();" value="Afficher"/>
<
div id="baseDiv">

</
div>
</
body>
</
html>

And using this script

function LoadPage() {
MscrmTools.Table.Height = $(window.document).height() - 200;
MscrmTools.Table.Width = $(window.document).width() - 50;
MscrmTools.Table._minWidth = 500;
MscrmTools.Table._minHeight = 300;

MscrmTools.Table.CurrentEntity =
"account";
var layout = '<layoutxml>';
layout +=
'<grid name="resultset" object="1" jump="name" select="1" icon="1" preview="1">';
layout +=
'<row name="result" id="accountid">';
layout +=
'<cell name="name" width="300" />';
layout +=
'<cell name="accountnumber" width="100" />';
layout +=
'<cell name="primarycontactid" width="150" />';
layout +=
'<cell name="address1_city" width="100" />';
layout +=
'<cell name="telephone1" width="100" />';
layout +=
'<cell name="emailaddress1" width="200" />';
layout +=
'</row>';
layout +=
'</grid>';
layout +=
'</layoutxml>';

MscrmTools.Table.SetLayoutXml(layout);
MscrmTools.Table.CreateTable(window.document.getElementById(
"baseDiv"));

window.document.body.onresize = MscrmTools.Table.Resize;
}

function display() {
var fetch = '<fetch mapping="logical">';
fetch +=
'<entity name="account">';
fetch +=
'<attribute name="name"/>';
fetch +=
'<attribute name="accountnumber"/>';
fetch +=
'<attribute name="primarycontactid"/>';
fetch +=
'<attribute name="address1_city"/>';
fetch +=
'<attribute name="telephone1"/>';
fetch +=
'<attribute name="emailaddress1"/>';
fetch +=
'</entity>';
fetch +=
'</fetch>';

MscrmTools.Table.SetFetchXml(fetch);
MscrmTools.Table.BuildLines();
}

I won’t show the table.js as I’m still considering options to deliver this script to the community, but for information, it’s a 800 lines script of 38KB.


As I said before, it’s a full feature grid:



  • Define fetchXml and layoutXml
  • Fixed header with horizontal and vertical scrolling
  • Paging (the script allows to define Records per page)
  • Records selection count (with total items count)
  • Grid refresh
  • Column behavior:

    • order (by clicking on the column header)
    • resize (drag and drop column separator or double click on it)

  • row selection (single or multiple using Ctrl or Shift hotkeys, by row selection or checkbox ticking)
  • Lookup allows referenced record to be opened
  • Double click open selected row
  • Click and Double Click handler to allow developer to add its own behavior

And you? What do you think about this grid? How do you deal with this need to create CRM grid views?


[UPDATE]


With this post comments, I noticed that I wasn’t managing link entities attributes. It is done now! And also, I won’t manage column filtering, which seems a little bit too complicated for me.
